Fatfish F16: Unleash Your Radio Control Potential with EdgeTX & ELRS!
Unleash your inner adventurer with this extraordinary piece – a captivating blend of timeless design and unexpected charm. Crafted with meticulous detail, it’s more than just an object; it’s a story waiting to be told. Prepare to be mesmerized.
$99.50
$199.00

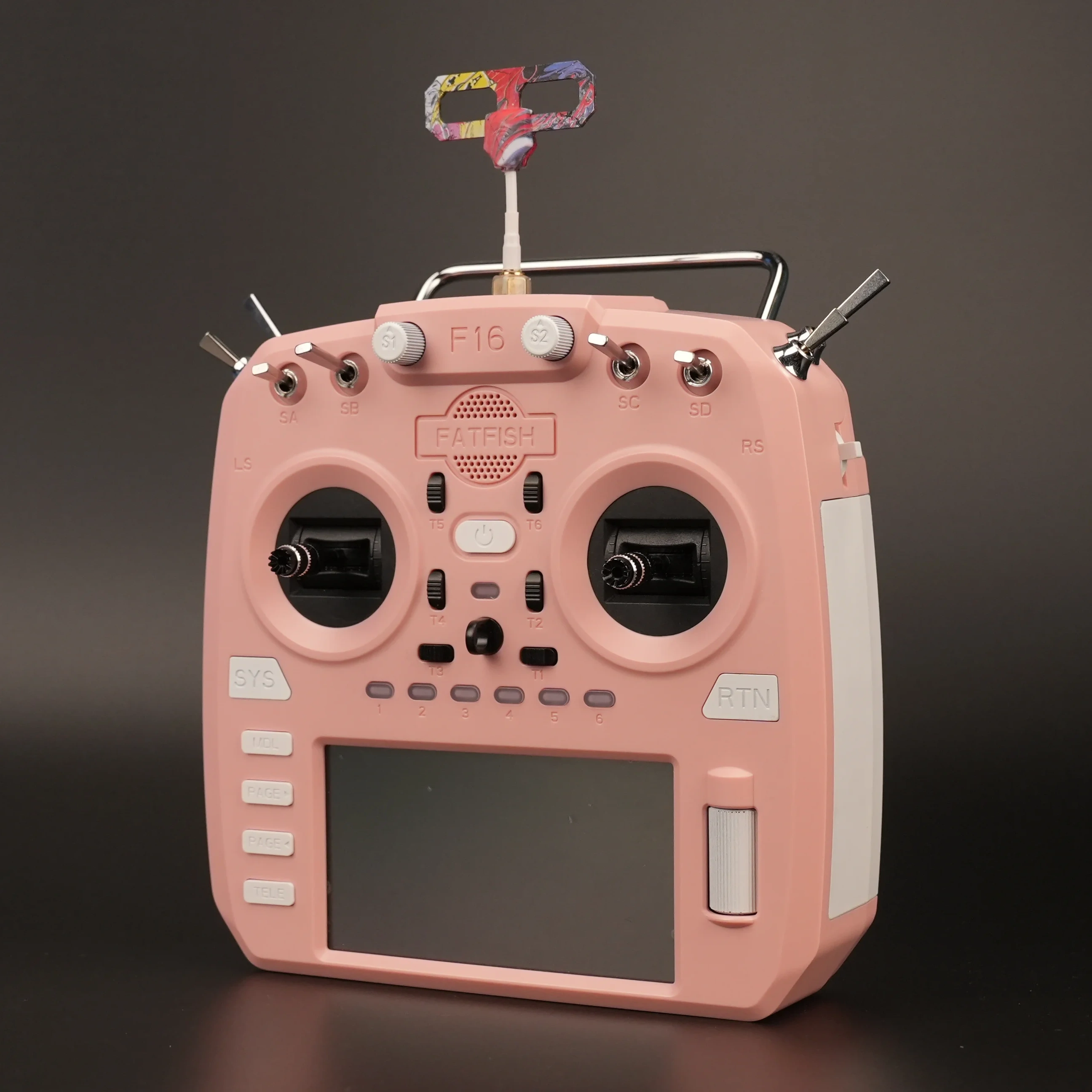

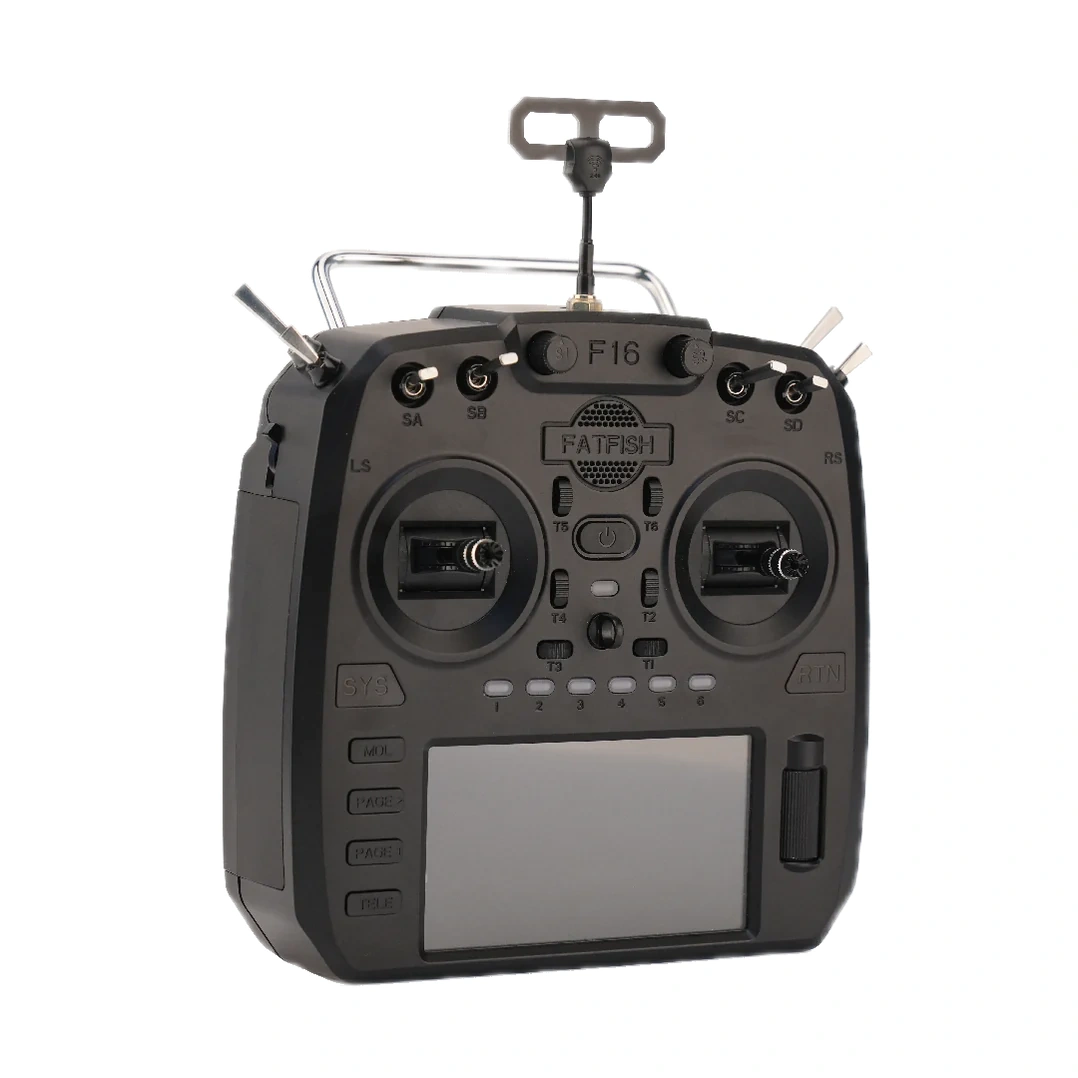

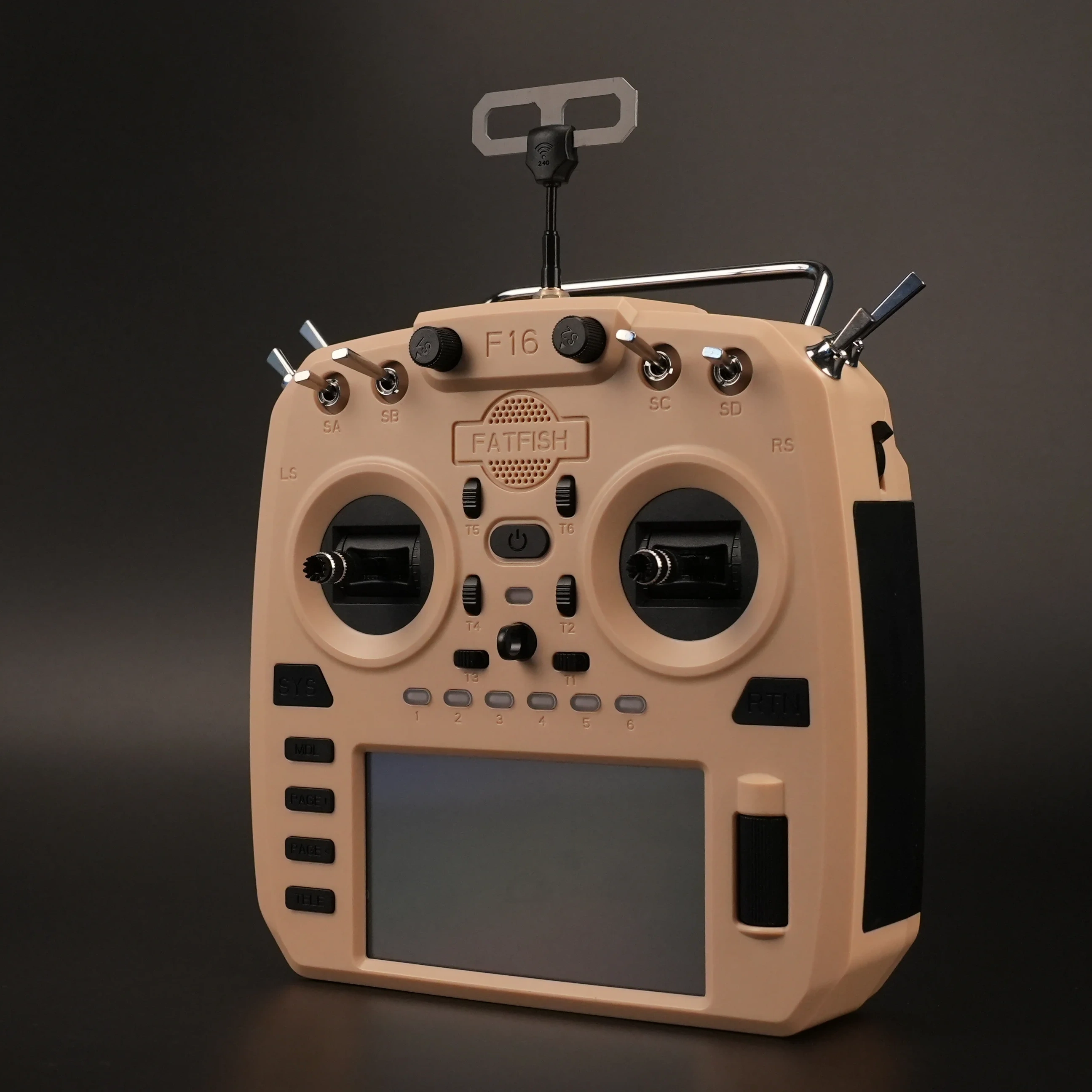

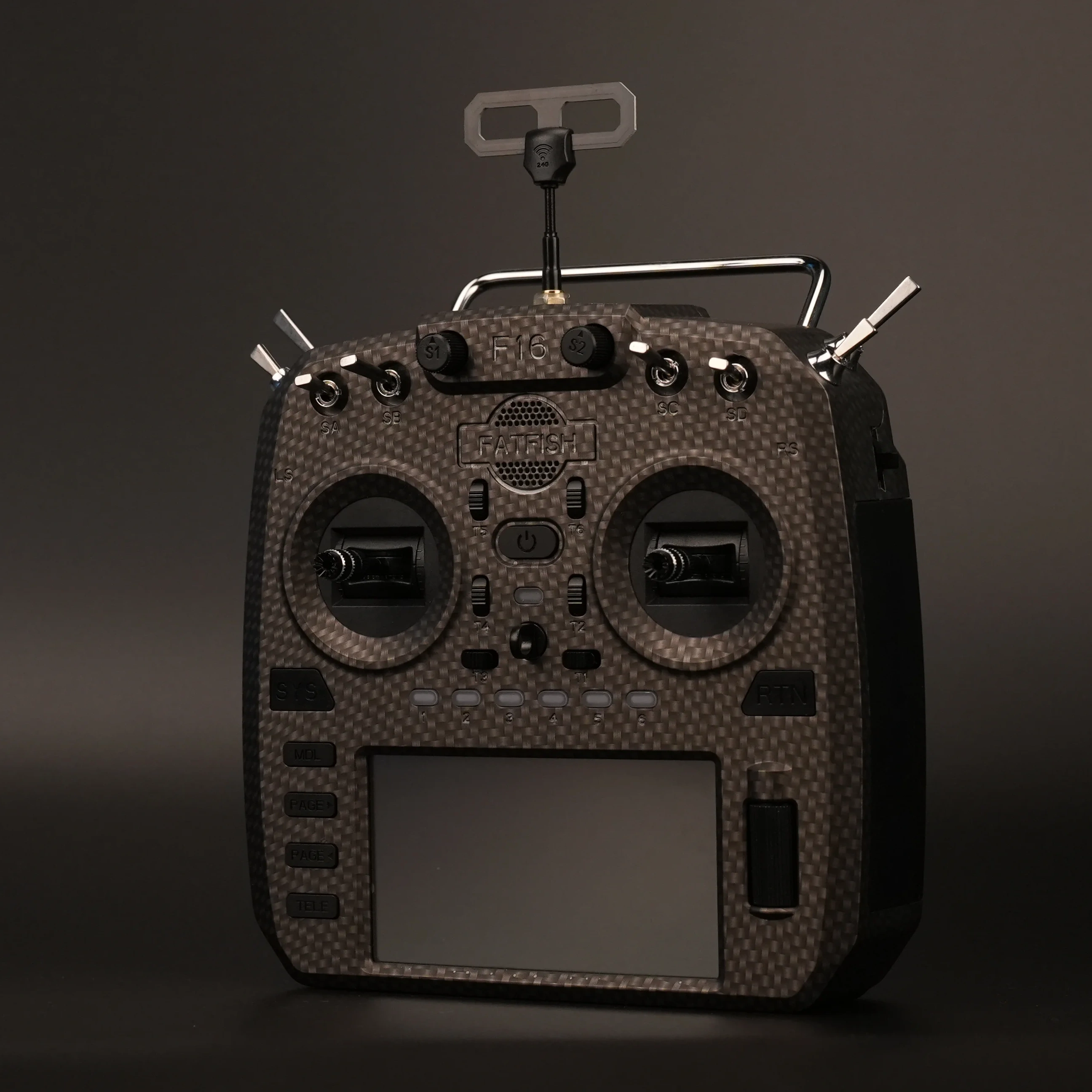

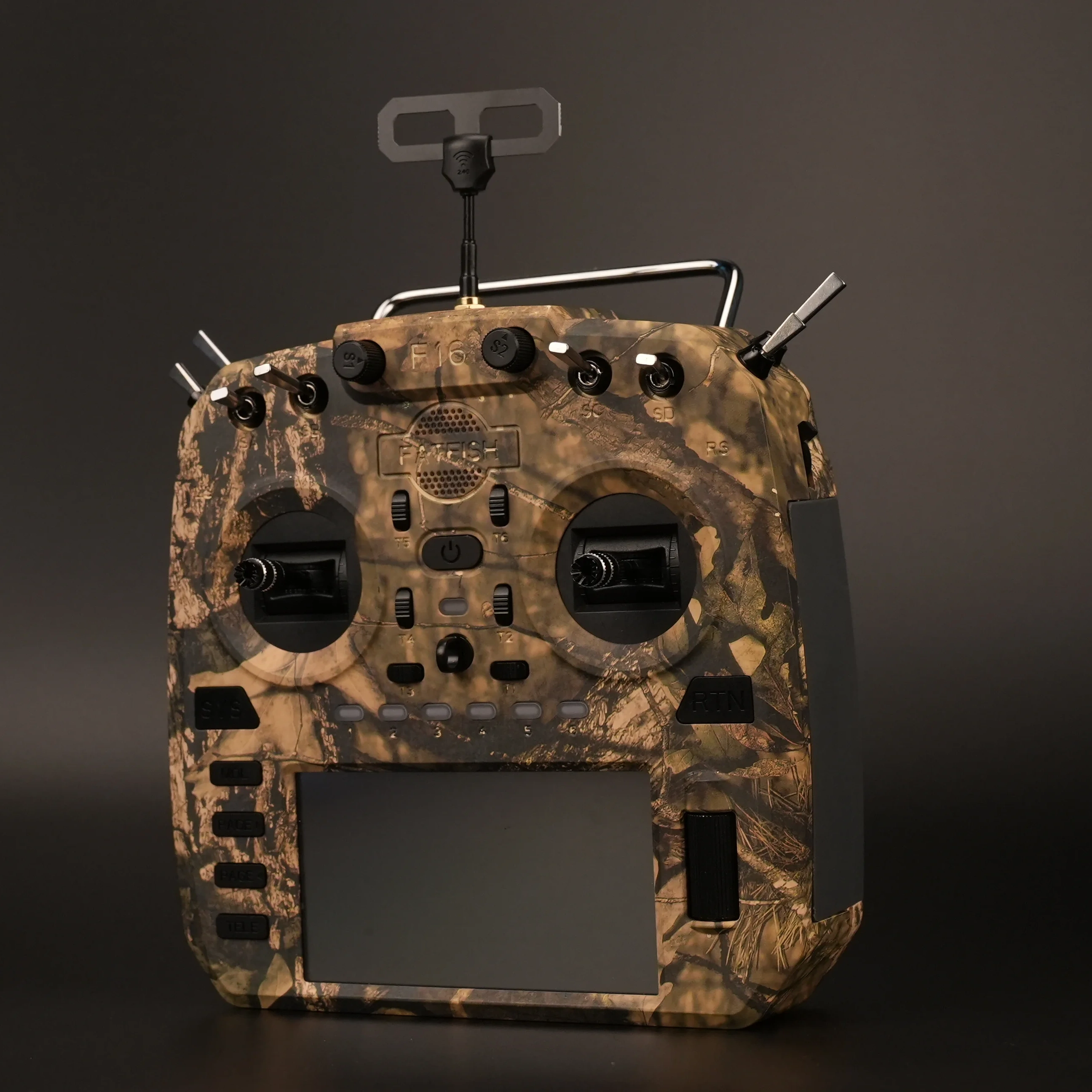

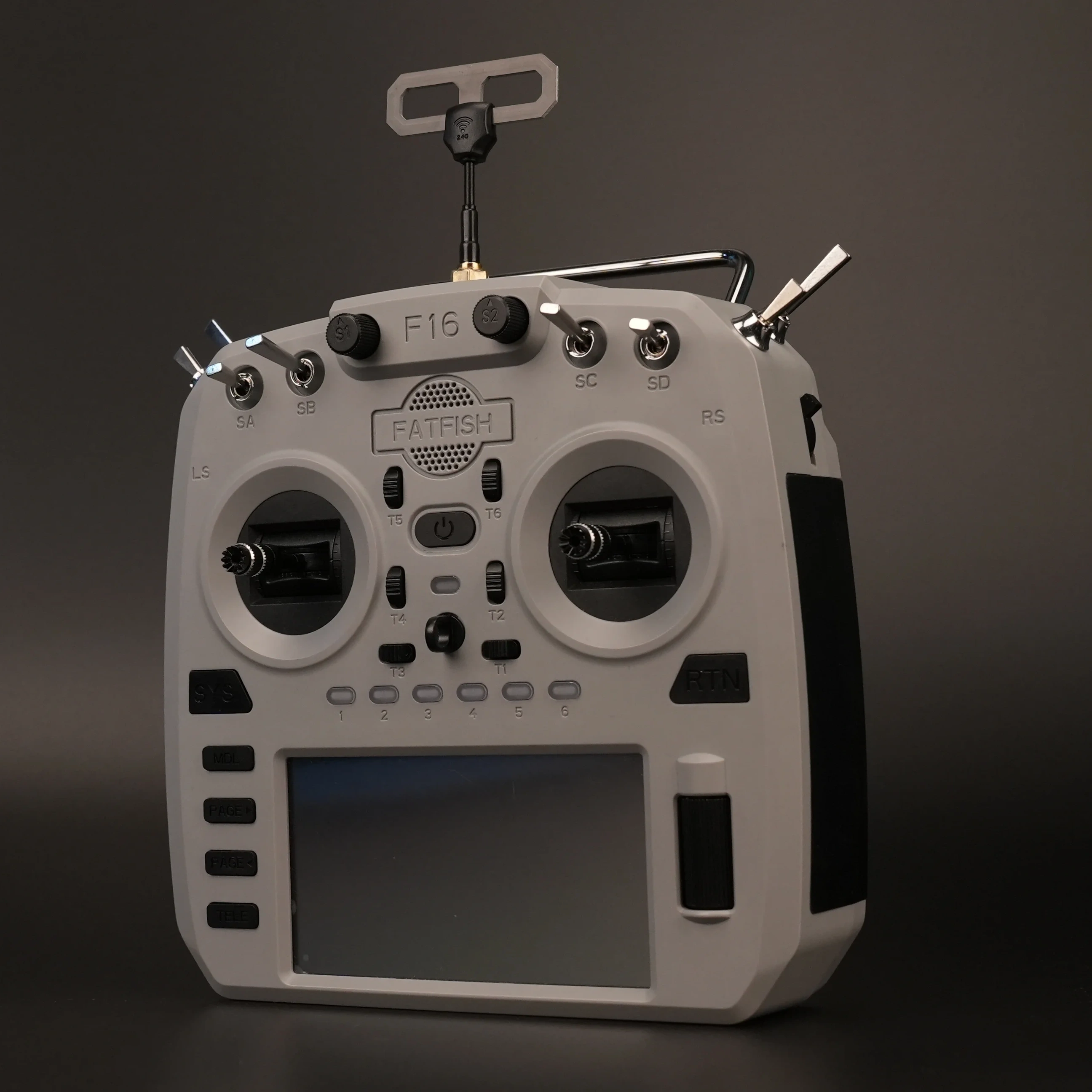

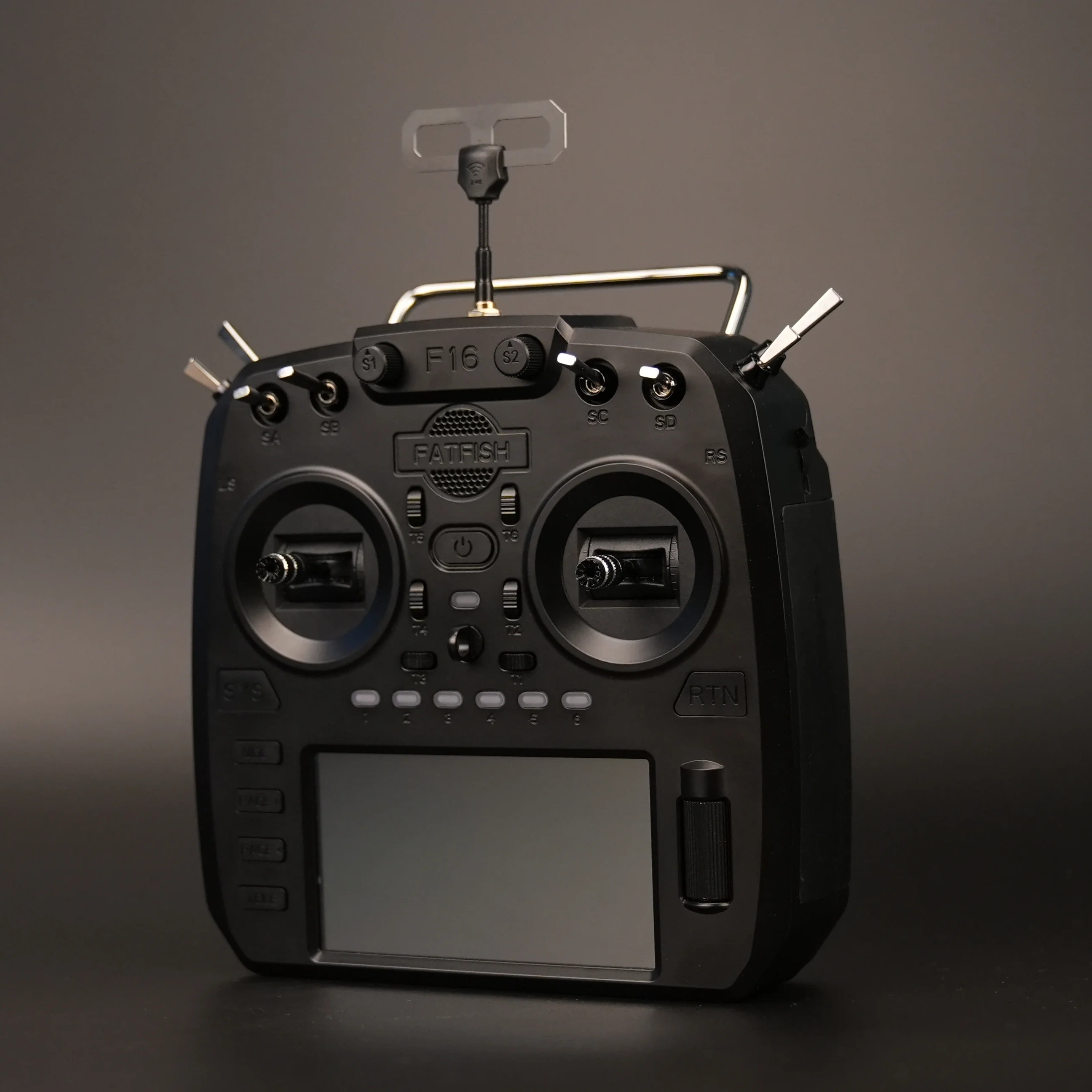

Master the skies with the Fatfish F16 Radio Transmitter. This advanced transmitter offers 16 channels for precise control, integrated EdgeTX for unparalleled customization, and an ELRS (250mW) / 4-in-1 module for superior connectivity. Its 4.3-inch display boasts an ultra-bright 1000-nit screen, ensuring clear visibility even under bright sunlight—perfect for any RC pilot looking to elevate their flying experience.
Key Features:
- Advanced Control: With up to 16 channels, manage your RC devices with unmatched precision.
- High-Performance Software: Comes with the integrated EdgeTX operating system, offering extensive customization and setup options.
- Exceptional Connectivity: Features a built-in ELRS module, ensuring robust and reliable links to your RC models.
- Superior Display: Enjoy a clear and vibrant view with the 4.3-inch TFT full-color touch display, boasting a brightness of 1000 nits for optimal visibility in all lighting conditions.
- Versatile Power Options: Supports multiple battery types including 2 x 3.7V Li-ION 18650 or 21700 cells, and 2 x 3.7V Lithium-polymer cells, providing flexibility and convenience for power management.
Specifications:
- Brand: FATFISH
- RF Module: Choose between a built-in ELRS or a versatile 4-in-1 multi-protocol module.
- Operating Voltage: 6.5~8.4V (2S lithium battery compatible)
- Temperature Range: Operates comfortably from -10 °C to 60 °C (14 °F to 140 °F).
- Connectivity: Features analog 5.8G video transmission and a JR compatible module bay for expanded capabilities.
- Upgradability: Update your device easily via USB-C or SD card.
- Dimensions and Weight: Measures 213 x 200 x 95 mm and weighs 608g (without battery).
Safety Notes:
- Use only the specified battery types to ensure safety and device integrity. Avoid 3.6v Li-ION cells and 6.6v LiFE battery packs to prevent damage or fire risk. Regularly check battery health and charge in a safe, monitored environment.
Key Features for FATFISH RX5808 Analog Video Receiver:
- Compact Design: Measuring 854441mm, the RX5808 is compact and lightweight, weighing only 104g.
- Wide Compatibility: Supports 5.8G frequency with 48 channels, including A, B, E, F, R, L bands.
- High Sensitivity: Receiver sensitivity of -101dbm ensures a stable and clear video signal.
- Versatile Power Options: Can be powered by an external battery (2s-3s, 7V-12.4V) or through a remote control when switched to INT mode.
- User-Friendly Interface: The main interface allows for easy locking and unlocking of manual channels and frequency adjustments with simple button presses.
- Advanced Menu Options:
- Scanning Mode: Scan frequencies from 5300-5900MHz and display signal strength.
- Graph Scan: Visualize channel signal strength with different colors and automatically switch to the strongest signal.
- RSSI Calibration: Calibrate the RSSI for accurate signal strength measurements.
- Settings Menu: Adjust screen backlight, fan speed, startup animation, buzzer, and OSD settings.
- About Menu: View relevant information about the receiver.
Specifications:
- Module Size: 85*44*41mm
- Weight: 104g
- Frequency: 5.8G 48 channels (A, B, E, F, R, L bands)
- Receiver Sensitivity: -101dbm
- Maximum Input Voltage: 12.4V
- Current: 900mA
- Power Input Options: External battery (2s-3s, 7V-12.4V) or remote control power supply in INT mode
